Mobile Stockpiling Conveyor
Input Size: 0-350mmCapacity: 100-1500 tph

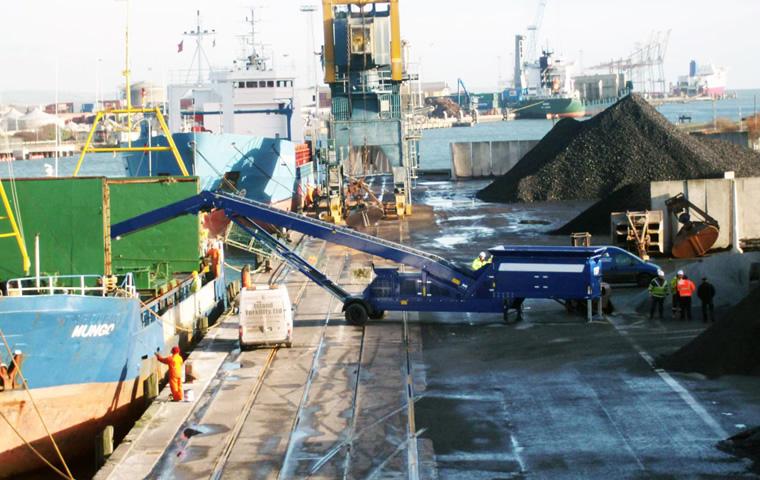

The Track conveyors is a track mounted fully mobile conveyor. As mobile crushers and screens constantly get larger with increased throughputs, transport restrictions have not allowed for their on board conveyors to increase in size and length to cope with higher tonnages.
Applications: Aggregates, Sand, Gravel, Limestone, Gabbro, Coal, Pet Coke, Salt, Ore, Grain, Fertilizer, Woodchips, Wood pellets, Sulphur, Bauxite and many more.
Track conveyors fulfil this need by providing much larger stockpile capacity and at the same time improve plant mobility by removing material from the processing equipment.
Eliminate double handling of material with wheel loaders
Stockpiling rates from 100 - 1500TPH
Stockpiling 0 - 350mm material
Environmental benefits reduced noise, dust and emissions
Safety benefits - less site traffic movement
Discharge heights up to 12 meters (40ft)
Conical stockpile up to 3,927 tonnes –2,454m3
Radial stockpile up to 15,123 tonnes –9,452m3
Features
1. Powerful, Optional Hybrid Drive
The track conveyor using turbo engine, which has features of strong power flow, fuel-efficient, long operating life and low failure rate. Mover it can option equip with the electric generator and the hybrid drive, this can further reduce the fuel consumption.
2. Solid Structure, Excellent Quality
Belt rack are all made of heavy structure design, the structure is strong;
Roller bearing adopts NSK bearings, choose high quality EP conveyor belt, longer service life.
3. Simple Operation, Can Container Transport
By operating the hydraulic lever to fold belt head and tail, convenient transportation; Crawler walking by wireless remote controller, the operation is simple; Using imported automatic oiler for bearing lubrication, reduce labor intensity of maintenance.
4. Economic Benefit Is Prominent
Subvert the traditional way of loader processing materials, materials flow is not interrupted, improve work efficiency, and save labor costs, fuel consumption is greatly reduced, to maximize economic benefits for our customers.
