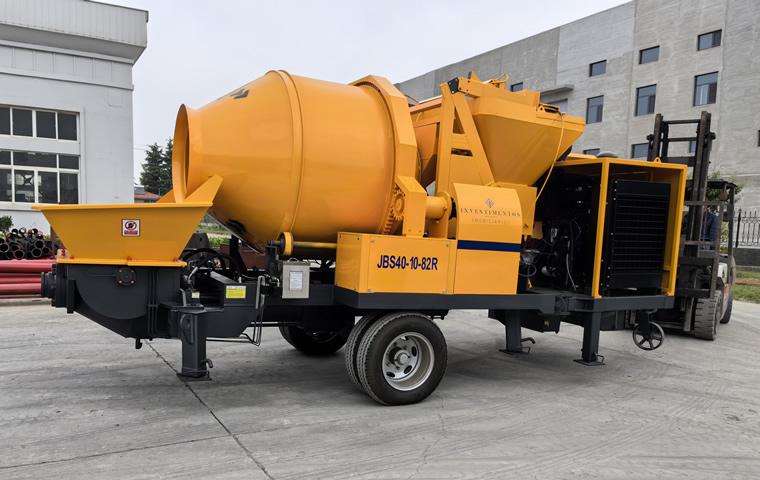

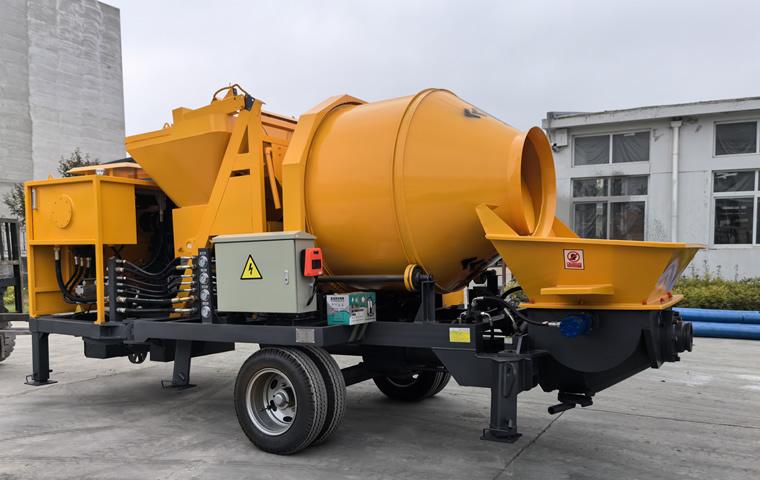

Diesel concrete mixer with pump
Input Size: Max aggregate size 40mmCapacity: 15 cubic meters per hour
Based on the construction needs of rural districts, small and medium towns, and various construction projects, our company has developed a new versatile piece of equipment: the "concrete mixer with pump." This innovation combines a concrete mixing system and a concrete delivery system, offering greater convenience for our customers.
Applications: Concrete / Cement Products, Precast Elements , Dam Construction, Road Paving, Industrial Floors, Architectural Precast, Waste Treatment, Foundries, etc.
Features
Hydraulic system:
Double open hydraulic loops (pumping hydraulic circuit is independent of distributing hydraulic circuit) with two pumps, makes the whole hydraulic system much simpler. The reliability of the whole system is also much higher as well as the components’ life is prolonged greatly. This is convenient for judging and removing trouble.
Hydraulic system has safe relief protection, at the same time, when the system pressure is overload, the main oil pump cutting device makes itself be protected reliably.
Distributing hydraulic circuit adopts constant pressure pump, which can provide strong distributing pressure and economic energy control.
Cone sealing of all pipes make the pipe joints seal reliably.
The high-low pressure switch adopting, remove the trouble of dismantling and installing the oil pipe.
Adopt emulsification technology of initiative and passivity recovery integration.
Electric control system:
Compared with domestic product, the electric control system is simplest, the element quantity is fewest and its reliability is highest.
The wire remote equipment is convenient for operation far away.
Adopting proximity switch in hydraulic cylinder can realize changing direction with non-touch, which ensures that the direction can be changed reliably.
Mechanical system:
The design of hopper and S valve and so on, adopt Ｉ－DEAS software to calculate, the hopper and S valve have good rigidity to avoid the phenomenon of hopper distortion and S valve breakage.
The mixer have unique form, which separates the hydraulic motor from mixing bearing pedestal. At the same time, adopting large displacement motor ensures that the mixing movement is big enough.
Make sure the pumping is good and decline the phenomenon of pipe jam, the spectacles wear plate and cutting ring should be used in lower abrasion. CSK’s spectacles wear plate and cutting ring use high wear material, making the components’ life prolonged greatly to 30 thousand cubic meter and above.
Lubrication system:
The hydraulic circuit will take high pressure oil into double distributor, and then the lubricating part can obtain hydraulic oil.It ensures the lubrication of the concrete cylinder’s piston and other parts and prolongs the life of piston and other seals.
Cooling system:
The radiator makes the working oil temperature of hydraulic system below 70℃ and makes the machine in good status.
